OPERATOR CONTROLLED PALLET POSITIONER
ZOOM IN

Alternative Views
  • There are no alternate images available for this product.

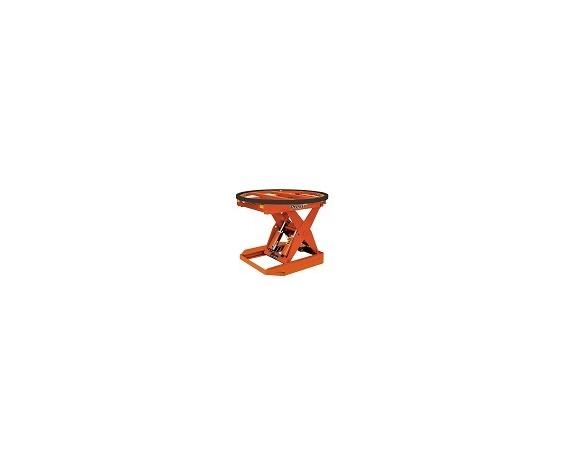

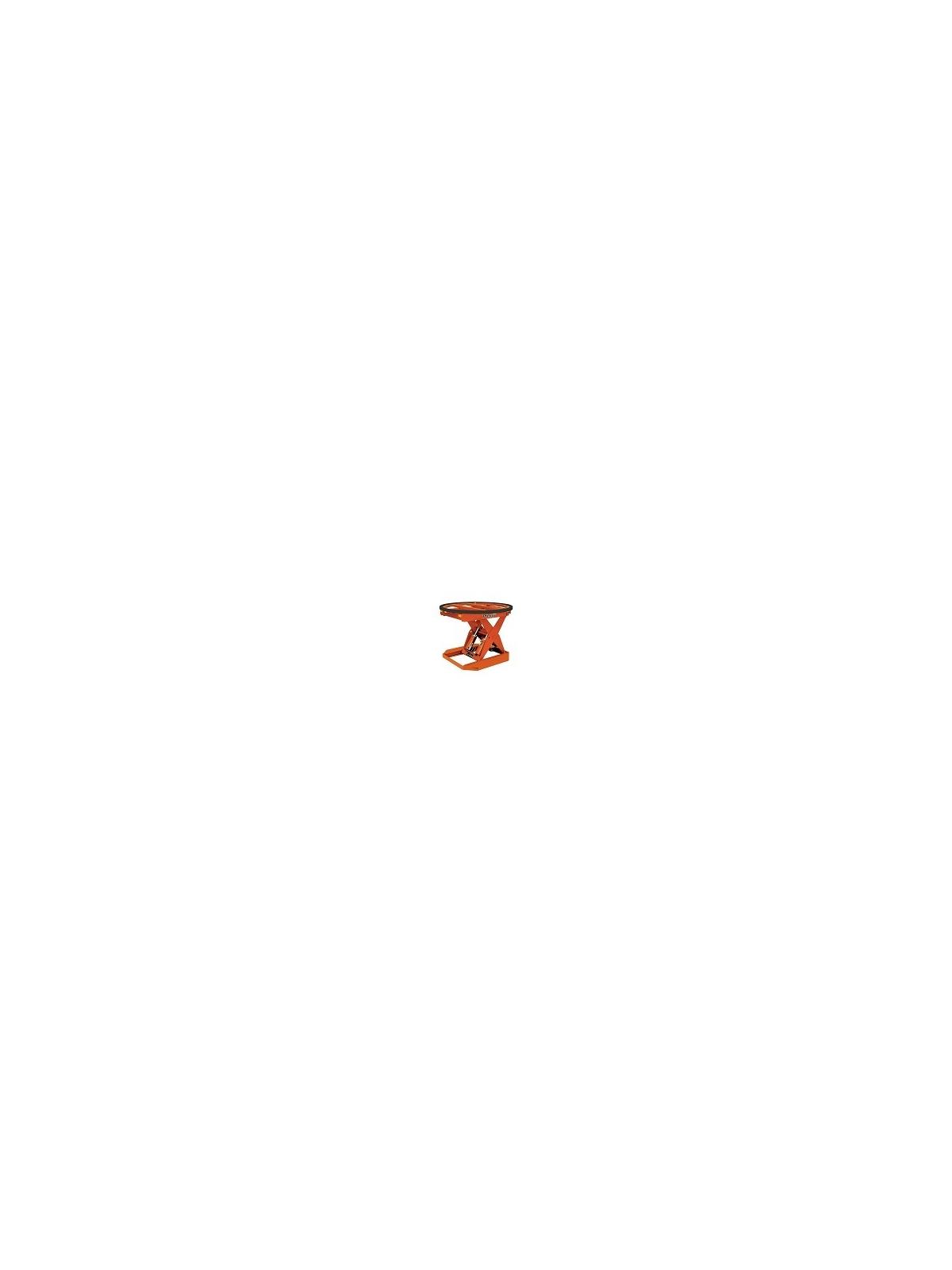

Operator Controlled Pallet Positioner

This fully-powered hydraulic version is ideal for precise load positioning or when load weights, pallet sizes or product dimensions vary greatly and frequently. FOB Shipping Point.

Operator controlled P3PH models feature 115V single phase primary voltage with either foot controls or hand controls.

Pricing subject to change notice without notice.

See Related Items tab for Automatic Pallet Positioner and Pallet Positioner Accessories.

There are related items or accessories for this product. Please see the Related Items tab below.


Product No. Controls Load Cap. (lbs.) Raised Height Lowered Height Turntable Dia. Base
L x W
Ship Wt. (lbs.) Qty Price Ea.
HP3PH-24-20-FC Foot 2000 32-3/4" 8-3/4" 43-5/8" 40 x 36" 700 $7,485.50
$7,163.16
HP3PH-24-40-FC Foot 4000 32-3/4" 8-3/4" 43-5/8" 40 x 36" 760 $8,459.00
$8,094.74
HP3PH-24-20-HC Hand 2000 32-3/4" 8-3/4" 43-5/8" 40 x 36" 700 $7,485.50
$7,163.16
HP3PH-24-40-HC Hand 4000 32-3/4" 8-3/4" 43-5/8" 40 x 36" 760 $8,459.00
$8,094.74
There are related items or accessories for this product. Please see the Related Items tab below.
