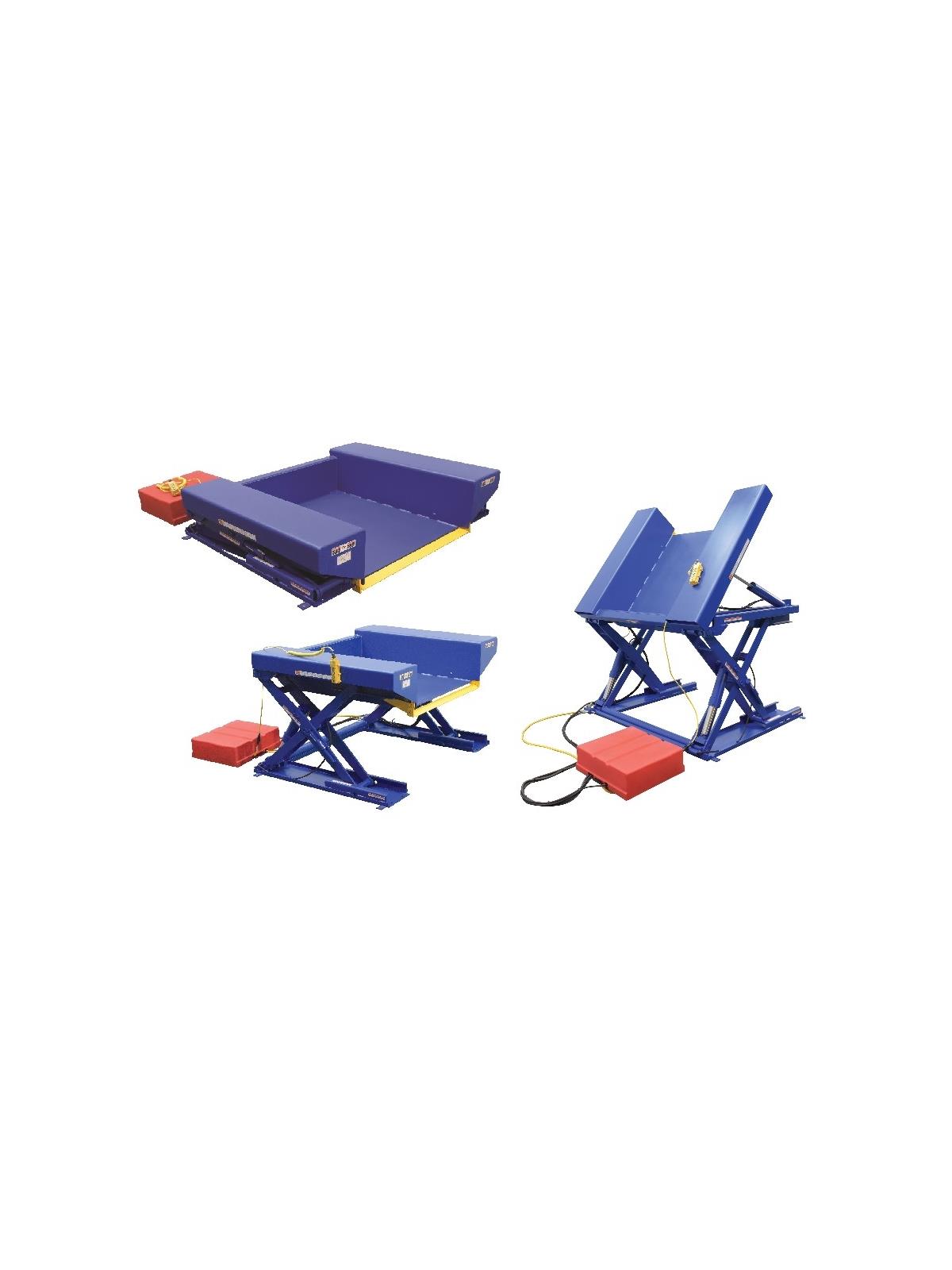

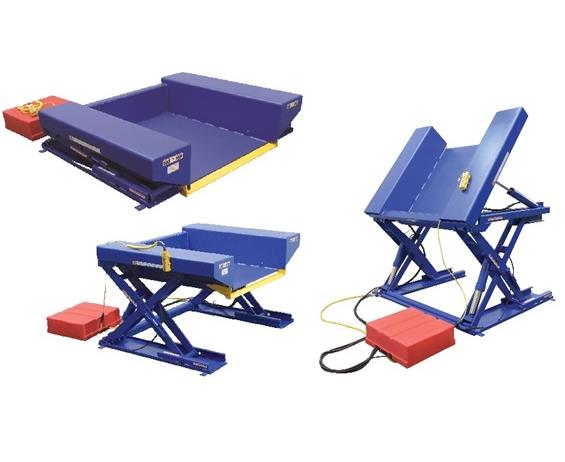

Ground Lift & Tilt Tables

A Ground Lift & Tilt Table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. Remote Power unit with hand-held control is standard. FOB Shipping Point.

Due to tariffs and market conditions, pricing subject to change.




Product No. Uniform Cap. (lbs.) Overall Deck Size
W x L
Usable Size
W x L
Deck Range Fender Height Range Wt. (lbs.) Qty Price Ea.
HEHLTGT-4452-2-36 2000 72-3/4 x 56-1/4" 44 x 52-3/4" 1/2 to 34" 15-1/4 to 49-15/16" 2121 $9,110.33
$8,173.14
HEHLTGT-4452-4-36 4000 72-3/4 x 56-1/4" 44 x 52-3/4" 1/2 to 34" 15-1/4 to 49-15/16" 2230 $11,027.01
$9,892.65
HEHLTGT-4472-2-48 2000 72-3/4 x 76-1/4" 44 x 72-3/4" 1/2 to 47-5/16" 15-1/4 to 61-15/16" 2950 $9,848.47
$8,835.35
HEHLTGT-4472-4-48 4000 72-3/4 x 76-1/4" 44 x 72-3/4" 1/2 to 47-5/16" 15-1/4 to 61-15/16" 3013 $12,318.45
$11,051.24
HEHLTGT-5252-2-36 2000 72-3/4 x 56-1/4" 52 x 52-3/4" 1/2 to 34" 15-1/4 to 49-15/16" 2337 $9,315.37
$8,357.08
HEHLTGT-5252-4-36 4000 72-3/4 x 56-1/4" 52 x 52-3/4" 1/2 to 34" 15-1/4 to 49-15/16" 2322 $11,237.43
$10,081.43
HEHLTGT-5272-2-48 2000 72-3/4 x 76-1/4" 52 x 72-3/4" 1/2 to 47-5/16" 15-1/4 to 61-15/16" 3045 $10,053.64
$9,019.41
HEHLTGT-5272-4-48 4000 72-3/4 x 76-1/4" 52 x 72-3/4" 1/2 to 47-5/16" 15-1/4 to 61-15/16" 3074 $12,528.25
$11,239.45
