SURFACE MOUNT DOCK LIFTS
ZOOM IN

Alternative Views
  • There are no alternate images available for this product.

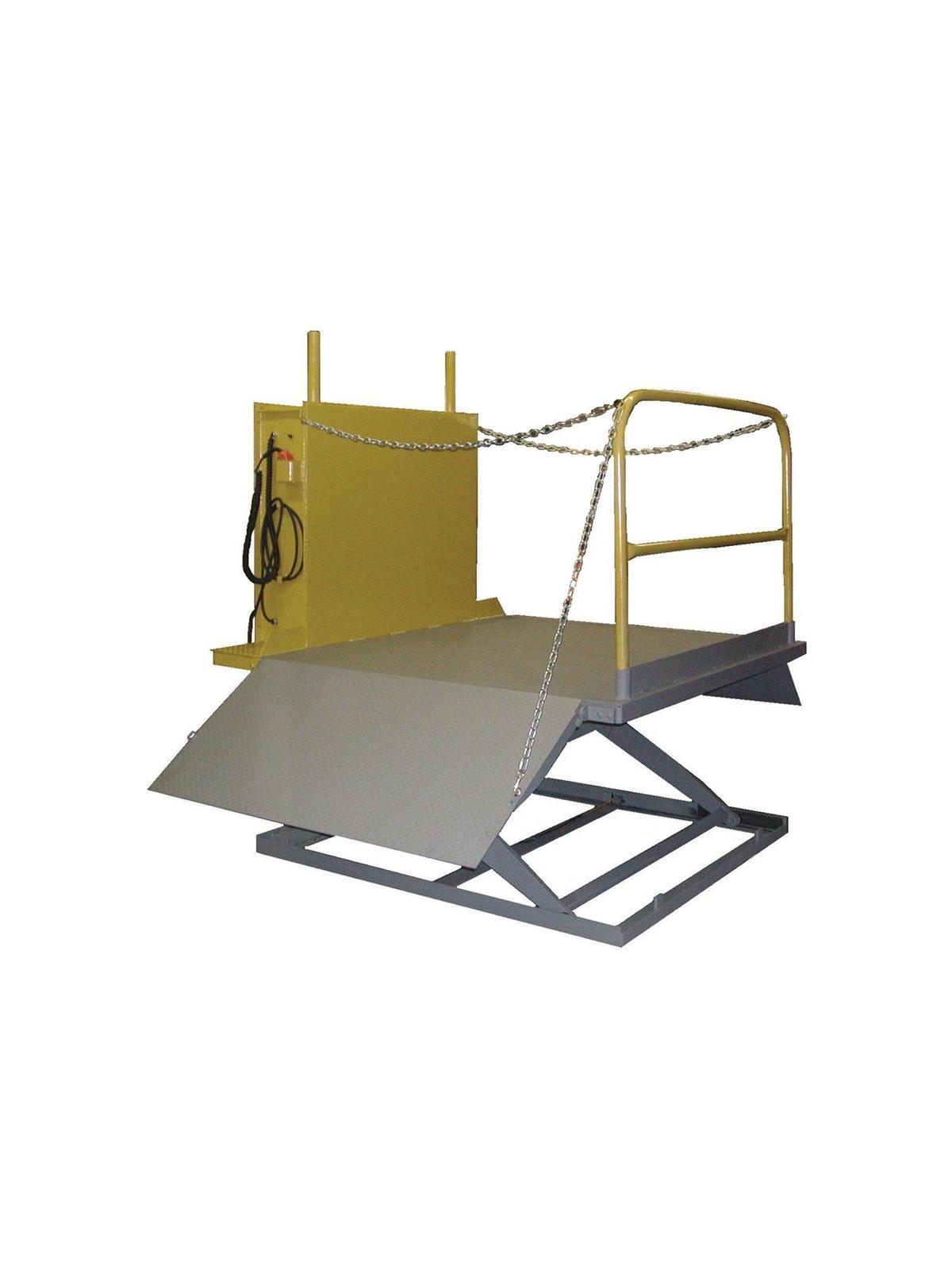

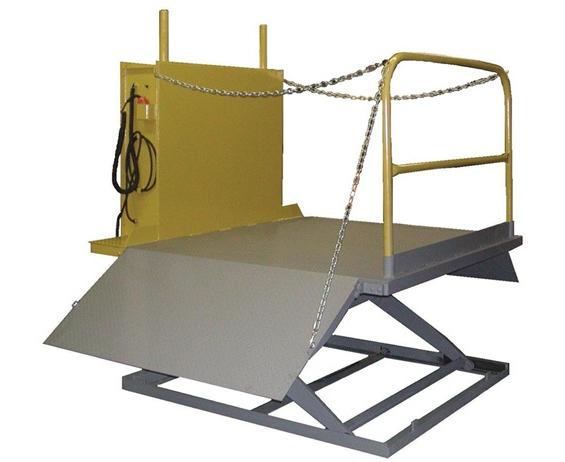

Surface Mount Dock Lifts

  • Turns any concrete surface into a loading dock.
  • Lifts up to 5,000 lbs.

You can have a loading dock any place you need one, as long as the surface will support the dock lift base. There is no pit required. Steel tread plate on all running surfaces. Push button control with twist lock plug. Includes removable hand railing and safety chains. Standard models can lift up to 5,000 lbs. and can accommodate hand carts, 4-wheel carts, and pallet trucks. FOB Shipping Point.

All products listed are subject to a surcharge. Please call for current price.



Product No. Cap. (lbs.) Raised Height Lowered Height Platform Size Axle Load
over Bridge
Wt. (lbs.) Qty Price Ea.
HDS030-54-72X72 3000 60" 6" 72 x 72" 2000 2300 $24,409.00
$21,898.03
HDS040-54-72X72 4000 60" 6" 72 x 72" 2000 2400 $26,653.00
$23,911.19
HDS050-54-72X72 5000 60" 6" 72 x 72" 2000 2500 $27,709.00
$24,858.56




Call For Special Pricing
Call For Special Pricing
