PORTABLE JIB CRANES
ZOOM IN

Alternative Views
  • There are no alternate images available for this product.

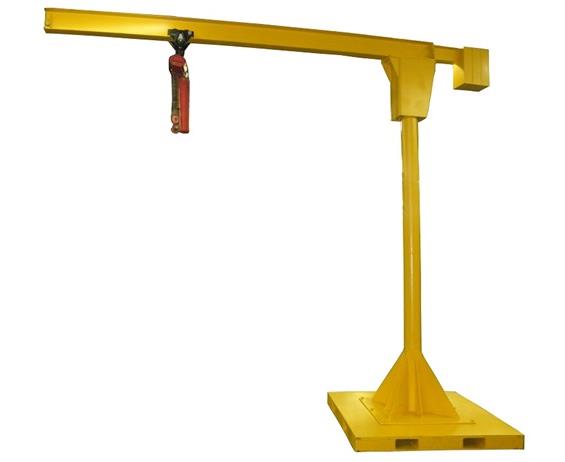

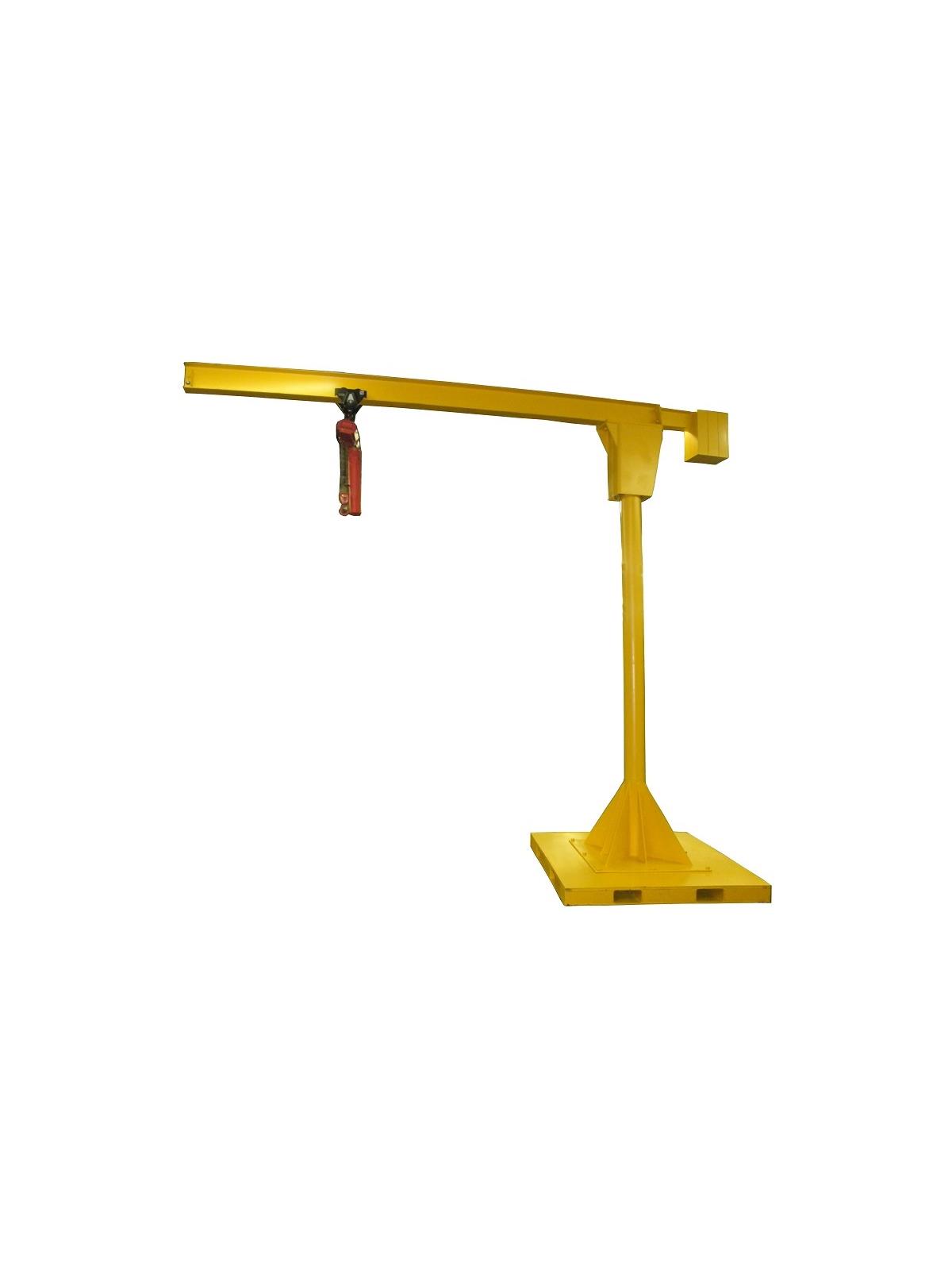

Portable Jib Cranes

  • No Installation required! ATI's sleek and self-contained portable jib is the best around!
  • 360 degree rotation - provides flexible use in any location.
  • 4-way fork pockets included for easy access.
  • Heavy counterweight base included for stability (minimum 125% safety factor against tipping) Additional boom counterweight rotates with the boom to always counterbalance the load.

Air Technical Industries (ATI) is a leading manufacturer of standard and custom material handling equipment. Our products are purpose-built to be ergonomic and heavy-duty. As an original equipment manufacturer (OEM), we design and manufacture all products in our ISO9001 certified factory in the USA. FOB Shipping Point.

No Installation Required- Counterweight Built-in- 4 way pockets- Trolley and hoist sold separately- Festooning kit option available.

Call for additional features and modifications.



Product No. Cap. (lbs.) Span Under Beam Ht. Wt. (lbs.) Qty Price Ea.
HJCPRT-588 500 8' 8' 2400 $10,742.60
$9,637.50
HJCPRT-5810 500 8' 10' 2500 $11,086.90
$9,946.39
HJCPRT-5108 500 10' 8' 2700 $11,267.30
$10,108.23
HJCPRT-51010 500 10' 10' 2800 $11,628.10
$10,431.91
HJCPRT-188 1000 8' 8' 2800 $15,491.30
$13,897.70
HJCPRT-1810 1000 8' 10' 3400 $15,862.00
$14,230.27
HJCPRT-1812 1000 8' 12' 3500 $16,528.60
$14,828.29
HJCPRT-1108 1000 10' 8' 3800 $15,741.00
$14,121.72
HJCPRT-11010 1000 10' 10' 3900 $16,402.10
$14,714.81
HJCPRT-11012 1000 10' 12' 4000 $16,764.00
$15,039.48
HJCPRT-1128 1000 12' 8' 4400 $19,319.30
$17,331.91
HJCPRT-11210 1000 12' 10' 4900 $19,886.90
$17,841.12
HJCPRT-11212 1000 12' 12' 5200 $20,374.20
$18,278.29
HJCPRT-11216 1000 12' 16' 5400 $23,067.00
$20,694.08
HJCPRT-21010 2000 10' 10' 6400 $22,759.00
$20,417.77
HJCPRT-21012 2000 10' 12' 6500 $23,555.40
$21,132.24
HJCPRT-21016 2000 10' 16' 6700 $25,149.30
$22,562.18
HJCPRT-21210 2000 12' 10' 7200 $28,374.50
$25,455.60
HJCPRT-21212 2000 12' 12' 7400 $29,099.40
$26,105.93
HJCPRT-21216 2000 12' 16' 8500 $30,692.20
$27,534.87
