MEDIUM HEAVY-DUTY CASTERS
ZOOM IN
MEDIUM HEAVY-DUTY CASTERS

Alternative Views
  • There are no alternate images available for this product.

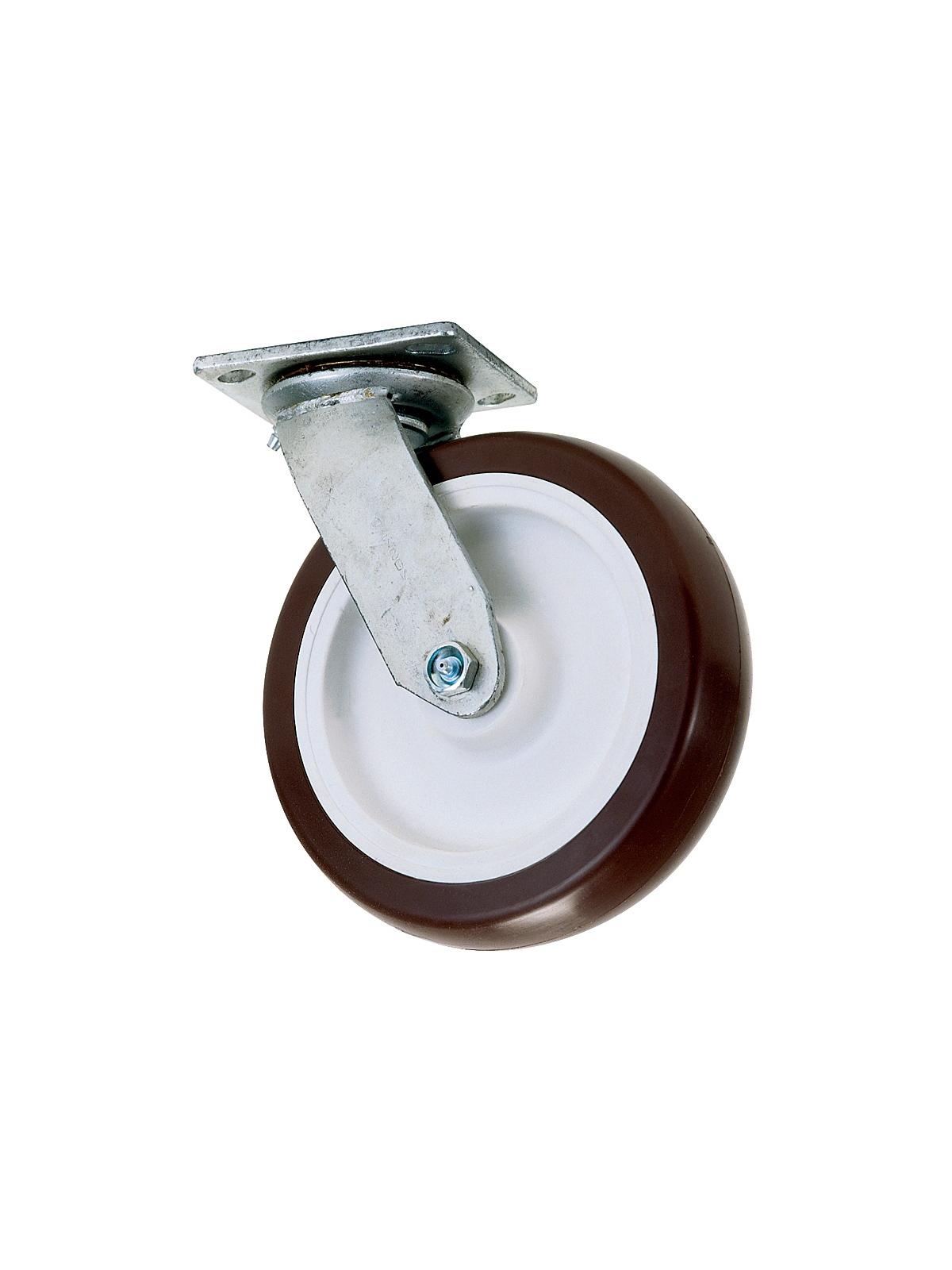

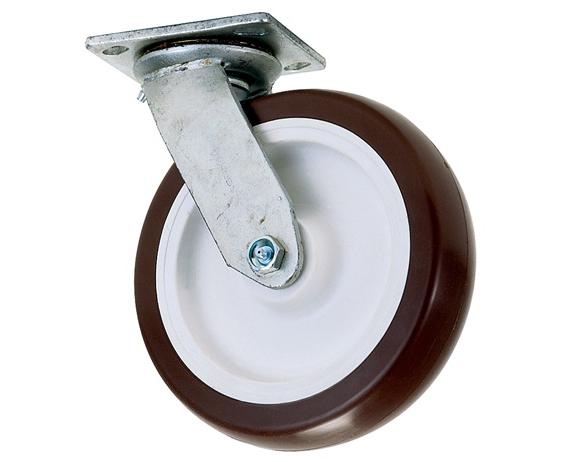

Medium Heavy-Duty Casters

  • Rugged cold-forged steel series features two separate and large diameter ball bearing raceways.
  • Includes lubrication fittings.
  • Made in USA.

Top plate is 1/4" cold forged and measures 4 x 4-1/2". Bolt hole is 2-5/8" x 3-5/8", slotted to 3 x 3". 1/4" upper and lower raceways. 5/16" load balls. 1/4" balls for lower raceway. 5/8" nut and bolt kingpin. Roller bearing. Zinc plated. FOB Shipping Point.

Steel surcharge may apply.

Wheel Description

PAYRON - Cast iron steel.
PLEXITE - Black phenolic.
PAYVULC - Black mold-on rubber.



Filter By


Image Product No. Style Dia. Width Cap. (lbs.) Type Overall
Height 		Wt. (lbs.) Qty Price Ea.
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-4US Swivel 4" 2" 550 Payron 5-5/8" 6-1/2 $46.38
$37.18
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-4UM Swivel 4" 2" 500 Plexite 5-5/8" 5 $40.14
$32.18
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-4UP Swivel 4" 2" 325 Payvulc 5-5/8" 5 $25.21
$20.20
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-5US Swivel 5" 2" 700 Payron 6-1/2" 7-1/2 $52.63
$42.18
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-5UM Swivel 5" 2" 700 Plexite 6-1/2" 5-1/2 $38.01
$30.47
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-5UP Swivel 5" 2" 375 Payvulc 6-1/2" 5-1/2 $28.98
$23.23
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-6US Swivel 6" 2" 850 Payron 7-1/2" 9 $55.83
$44.74
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-6UM Swivel 6" 2" 820 Plexite 7-1/2" 7 $35.38
$28.36
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-6UP Swivel 6" 2" 410 Payvulc 7-1/2" 7 $32.34
$25.93
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-8US Swivel 8" 2" 1050 Payron 9-1/2" 12-1/2 $67.24
$53.89
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-8UM Swivel 8" 2" 1000 Plexite 9-1/2" 8-1/2 $43.01
$34.48
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H190-8UP Swivel 8" 2" 500 Payvulc 9-1/2" 8-1/2 $42.53
$34.08
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-4US Rigid 4" 2" 550 Payron 5-5/8" 6-1/2 $41.21
$33.03
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-4UM Rigid 4" 2" 500 Plexite 5-5/8" 5 $30.87
$24.74
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-4UP Rigid 4" 2" 325 Payvulc 5-5/8" 5 $20.70
$16.58
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-5US Rigid 5" 2" 700 Payron 6-1/2" 7-1/2 $50.08
$40.14
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-5UM Rigid 5" 2" 700 Plexite 6-1/2" 5-1/2 $31.77
$25.47
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-5UP Rigid 5" 2" 375 Payvulc 6-1/2" 5-1/2 $26.11
$20.93
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-6US Rigid 6" 2" 850 Payron 7-1/2" 9 $52.13
$41.78
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-6UM Rigid 6" 2" 820 Plexite 7-1/2" 7 $33.33
$26.72
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-6UP Rigid 6" 2" 410 Payvulc 7-1/2" 7 $30.13
$24.15
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-8US Rigid 8" 2" 1050 Payron 9-1/2" 12-1/2 $55.17
$44.22
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-8UM Rigid 8" 2" 1000 Plexite 9-1/2" 8-1/2 $40.97
$32.83
EnlargeMEDIUM HEAVY-DUTY CASTERS

 H191-8UP Rigid 8" 2" 500 Payvulc 9-1/2" 8-1/2 $36.70
$29.41
