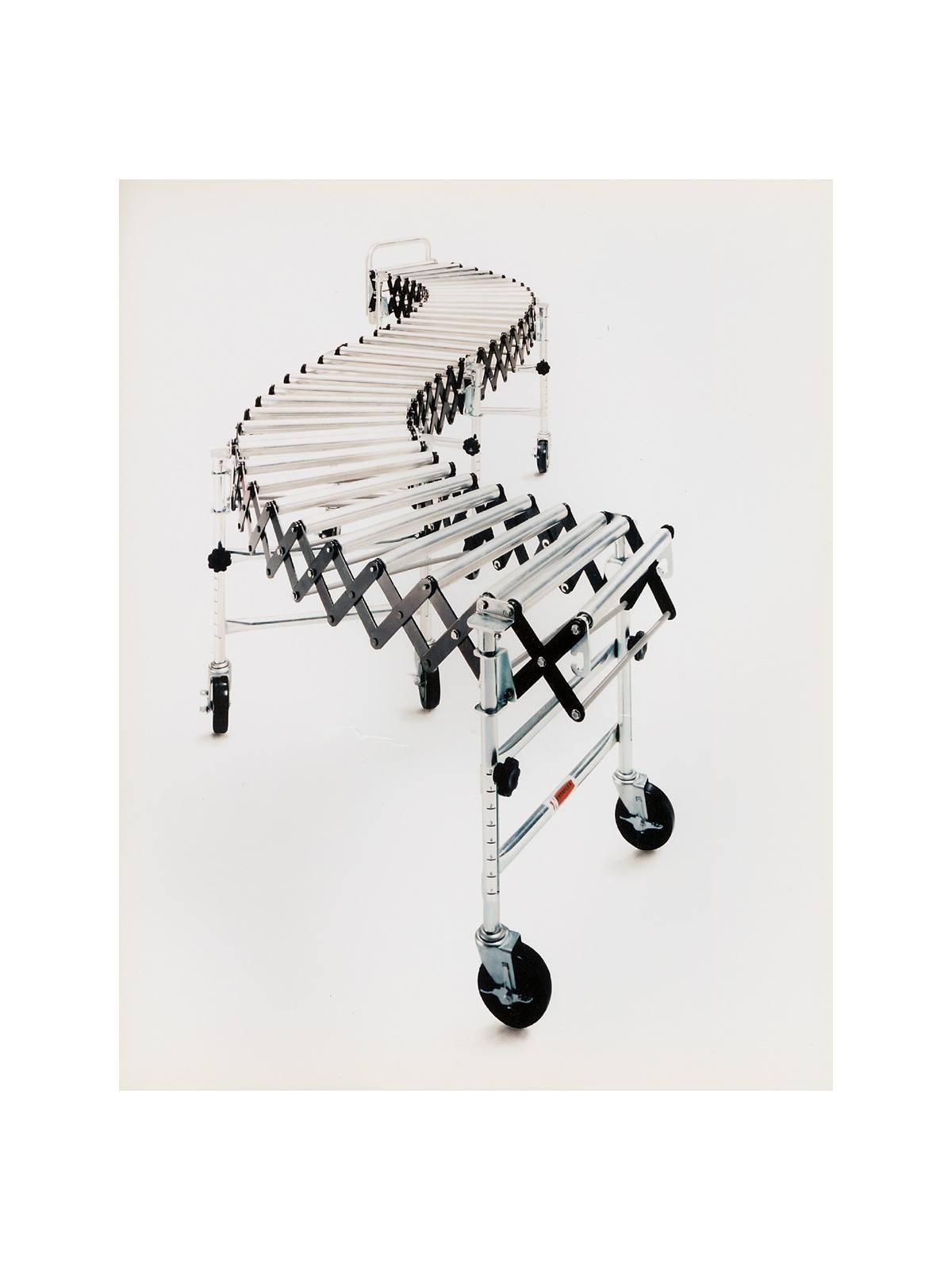

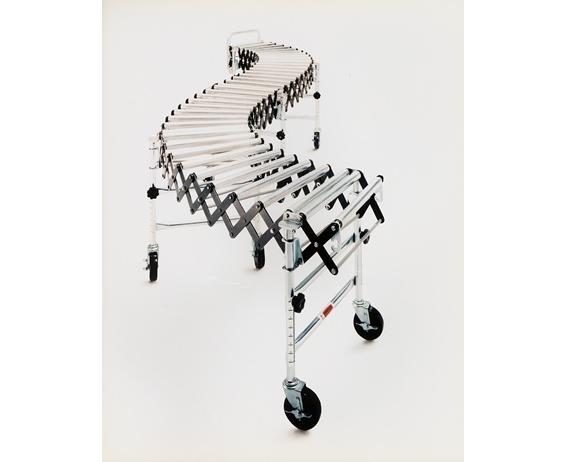

MEDIUM-DUTY ACCORDION ROLLER CONVEYORS
ZOOM IN
MEDIUM-DUTY ACCORDION ROLLER CONVEYORS

Alternative Views
  • There are no alternate images available for this product.


Medium-Duty Accordion Roller Conveyors

  • 200 lb. per lineal foot load capacity.
  • Galvanized steel rollers for excellent durability.

1-3/8" O.D. galvanized steel rollers on 5-1/4" axle centers. 28" to 36", box stop, pull handle and couplers standard. 5 x 1-1/2" swivel/wheel lock casters: 9 rollers per bed section. FOB Shipping Point.

Surcharge may apply.



Filter By


Product No. Width Length Contracted/
Extended at Max. 		Leg Sets per Unit Bed Sections per Unit Wt. (lbs.) Qty Price Ea.
HRLR18008S 18" 2'8" - 8'6" 3 2 185 $1,948.32
$1,747.90
HRLR18012S 18" 3'9" - 12'2" 4 3 255 $2,587.20
$2,321.06
HRLR18016S 18" 4'10" - 15'10" 5 4 310 $3,246.15
$2,912.22
HRLR18020S 18" 5'11" - 19'6" 6 5 360 $3,843.84
$3,448.43
HRLR18024S 18" 7'0" - 23'2" 7 6 415 $4,454.21
$3,996.00
HRLR18028S 18" 8'4" - 27'9" 8 7 520 $5,327.52
$4,779.48
HRLR18032S 18" 9'5" - 31'5" 9 8 570 $5,987.52
$5,371.58
HRLR18036S 18" 10'6" - 35'1" 10 9 625 $6,520.80
$5,850.00
HRLR18040S 18" 12'5" - 41'6" 12 11 740 $7,212.48
$6,470.53
HRLR24008S 24" 2'8" - 8'6" 3 2 210 $2,101.44
$1,885.27
HRLR24012S 24" 3'9" - 12'2" 4 3 270 $2,793.12
$2,505.79
HRLR24016S 24" 4'10" - 15'10" 5 4 350 $3,564.00
$3,197.37
HRLR24020S 24" 5'11" - 19'6" 6 5 410 $4,226.12
$3,791.37
HRLR24024S 24" 7'0" - 23'2" 7 6 470 $4,899.84
$4,395.79
HRLR24028S 24" 8'4" - 27'9" 8 7 585 $5,829.12
$5,229.48
HRLR24032S 24" 9'5" - 31'5" 9 8 645 $6,489.12
$5,821.58
HRLR24036S 24" 10'6" - 35'1" 10 9 705 $7,149.12
$6,413.69
HRLR24040S 24" 12'5" - 41'6" 12 11 835 $7,930.56
$7,114.74
HRLR30008S 30" 2'8" - 8'6" 3 2 220 $2,209.16
$1,981.90
HRLR30012S 30" 3'9" - 12'2" 4 3 280 $2,935.68
$2,633.69
HRLR30016S 30" 4'10" - 15'10" 5 4 360 $4,164.87
$3,736.43
HRLR30020S 30" 5'11" - 19'6" 6 5 430 $4,445.76
$3,988.43
HRLR30024S 30" 7'0" - 23'2" 7 6 490 $5,158.56
$4,627.90
HRLR30028S 30" 8'4" - 27'9" 8 7 610 $6,124.80
$5,494.74
HRLR30032S 30" 9'5" - 31'5" 9 8 670 $6,790.08
$6,091.58
HRLR30036S 30" 10'6" - 35'1" 10 9 730 $7,482.82
$6,713.06
HRLR30040S 30" 12'5" - 41'6" 12 11 870 $8,341.35
$7,483.27
