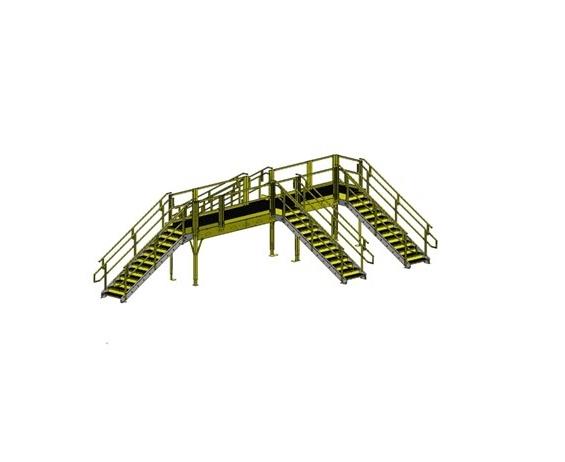

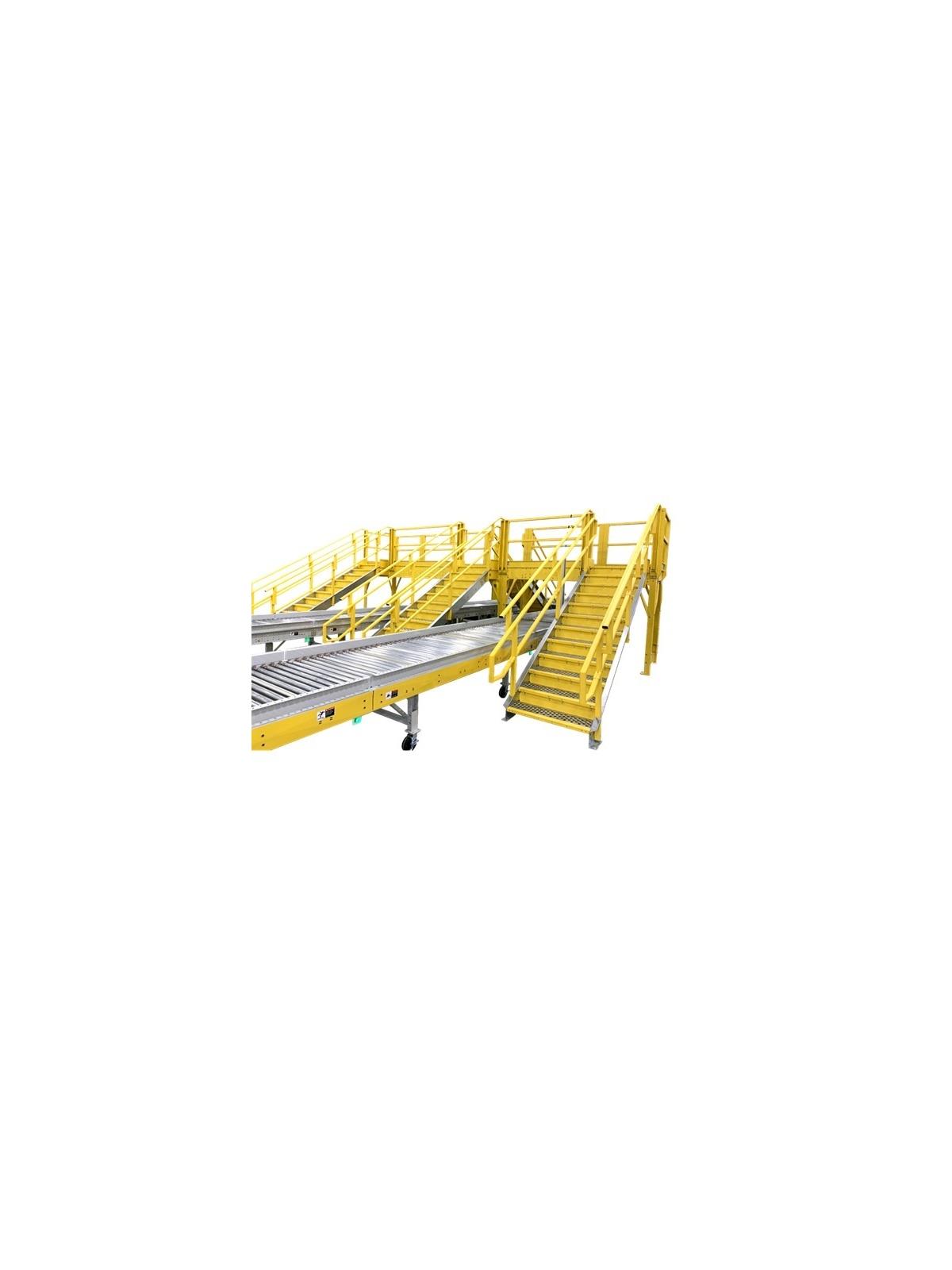

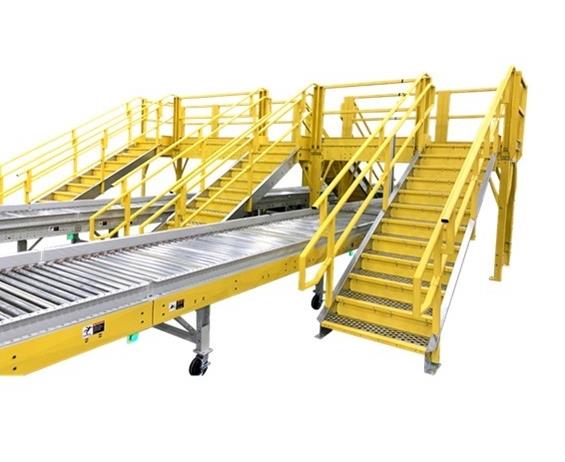

Conveyor Crossovers

  • Easily reconfigurable.

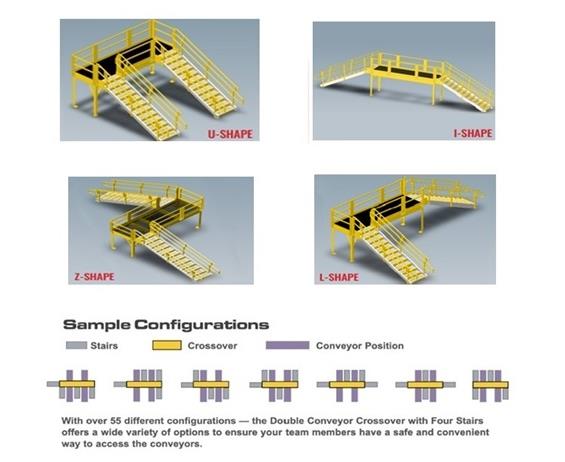

Crossover ladders allow workers a code compliant exit and egress plan within the building. This single kit of parts allows the crossover to be raised in increments of 2 inches up to 2 feet in height. The components in the crossover kit; railings, posts, and beams have been designed to meet OSHA standards and the stairs have been designed to meet IBC standards. The stairs in this kit of parts enables you to raise the crossover approximately three to four inches, if higher than this rise is required then a different set of stairs would be needed. Constructed with high-quality hot-dipped galvanized and powder coated steel, our customizable and configurable systems can be taken apart and put back together easily in a different location if needed and they're also designed, out of the box, to build a U-shaped, Z-shaped, L-shaped and I-shaped crossover based on your footprint-without extra parts or cost. FOB Shipping Point.

Surcharge may apply.



Filter By

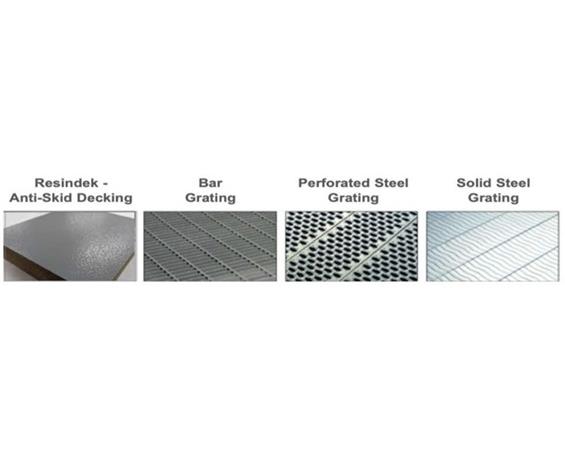

Product No. Description Decking Size W x D x H Top of Deck Clearance Ht. Below Beam Adjustability Stairs Qty/Model Wt. (lbs.) Qty Price Ea.
HECC01R Single Wide - Standard Height Resindek 168 x 48 x 80-1/8" 6' 9-1/8" 5'6-1/8" 3" 2-IBC11 2580.9 $28,270.00
$25,361.85
HECC01BG Single Wide - Standard Height Bar Grating 168 x 48 x 80-1/8" 6' 9-1/8" 5'6-1/8" 3" 2-IBC11 2580.9 $30,424.90
$27,295.07
HECC01PG Single Wide - Standard Height Perforated Grating 168 x 48 x 80-1/8" 6' 9-1/8" 5'6-1/8" 3" 2-IBC11 2580.9 $27,720.00
$24,868.43
HECC01SG Single Wide - Standard Height Solid Grating 168 x 48 x 80-1/8" 6' 9-1/8" 5'6-1/8" 3" 2-IBC11 2580.9 $27,743.10
$24,889.15
HECC01-TR Single Wide - Extended Height Resindek 168 x 48 x 93-1/8" 7'9-1/8" 6'6-1/8" 4" 2-IBC13 2756.9 $33,092.40
$29,688.16
HECC01-TBG Single Wide - Extended Height Bar Grating 168 x 48 x 93-1/8" 7'9-1/8" 6'6-1/8" 4" 2-IBC13 2756.9 $35,247.30
$31,621.39
HECC01-TPG Single Wide - Extended Height Perforated Grating 168 x 48 x 93-1/8" 7'9-1/8" 6'6-1/8" 4" 2-IBC13 2756.9 $33,190.30
$29,775.99
HECC01-TSG Single Wide - Extended Height Solid Grating 168 x 48 x 93-1/8" 7'9-1/8" 6'6-1/8" 4" 2-IBC13 2756.9 $33,236.50
$29,817.44
HECC02R Double Wide - Standard Height Resindek 216 x 48 x 80-1/8" 6'9-1/8" 5'4-1/8" 3" 2-IBC11 3100 $32,204.70
$28,891.78
HECC02BG Double Wide - Standard Height Bar Grating 216 x 48 x 80-1/8" 6'9-1/8" 5'4-1/8" 3" 2-IBC11 3100 $34,156.10
$30,642.44
HECC02PG Double Wide - Standard Height Perforated Grating 216 x 48 x 80-1/8" 6'9-1/8" 5'4-1/8" 3" 2-IBC11 3100 $27,605.60
$24,765.79
HECC02SG Double Wide - Standard Height Solid Grating 216 x 48 x 80-1/8" 6'9-1/8" 5'4-1/8" 3" 2-IBC11 3100 $27,712.30
$24,861.52
HECC02-TR Double Wide - Extended Height Resindek 216 x 48 x 93-1/8" 7'9-1/8" 6'4-1/8" 4" 2-IBC13 3256.6 $36,489.20
$32,735.53
HECC02-TBG Double Wide - Extended Height Bar Grating 216 x 48 x 93-1/8" 7'9-1/8" 6'4-1/8" 4" 2-IBC13 3256.6 $39,095.10
$35,073.36
HECC02-TPG Double Wide - Extended Height Perforated Grating 216 x 48 x 93-1/8" 7'9-1/8" 6'4-1/8" 4" 2-IBC13 3256.6 $36,616.80
$32,850.00
HECC02-TSG Double Wide - Extended Height Solid Grating 216 x 48 x 93-1/8" 7'9-1/8" 6'4-1/8" 4" 2-IBC13 3256.6 $36,778.50
$32,995.07
HECC02-XLR Double Wide - Extended Length Resindek 292 x 48 x 80-1/8" 6'9-1/8" 5'8-1/8" 3" 2-IBC11 3083 $33,598.40
$30,142.11
HECC02-XLBG Double Wide - Extended Length Bar Grating 292 x 48 x 80-1/8" 6'9-1/8" 5'8-1/8" 3" 2-IBC11 3083 $36,238.40
$32,510.53
HECC02-XLPG Double Wide - Extended Length Perforated Grating 292 x 48 x 80-1/8" 6'9-1/8" 5'8-1/8" 3" 2-IBC11 3083 $33,321.20
$29,893.43
HECC02-XLSG Double Wide - Extended Length Solid Grating 292 x 48 x 80-1/8" 6'9-1/8" 5'8-1/8" 3" 2-IBC11 3083 $33,310.20
$29,883.56
HECC02-XLTR Double Wide - Extended Height/Extended Length Resindek 292 x 48 x 80-1/8" 7'9-1/8" 6'9-1/8" 4" 2-IBC13 3287 $37,400.00
$33,552.64
HECC02-XLTBG Double Wide - Extended Height/Extended Length Bar Grating 292 x 48 x 80-1/8" 7'9-1/8" 6'9-1/8" 4" 2-IBC13 3287 $41,179.60
$36,943.43
HECC02-XLTPG Double Wide - Extended Height/Extended Length Perforated Grating 292 x 48 x 80-1/8" 7'9-1/8" 6'9-1/8" 4" 2-IBC13 3287 $38,262.40
$34,326.32
HECC02-XLTSG Double Wide - Extended Height/Extended Length Solid Grating 292 x 48 x 80-1/8" 7'9-1/8" 6'9-1/8" 4" 2-IBC13 3287 $38,251.40
$34,316.45
