509 DIAMOND-TUFF™ & 510 DIAMOND-TUFF™ MAX

509 DIAMOND-TUFF™ & 510 DIAMOND-TUFF™ MAX


catalog . store . work benches . all welded . all-welded workbenches
Back to All Welded |


WELDED WORKBENCHES
ZOOM IN
WELDED WORKBENCHES

Alternative Views
  • There are no alternate images available for this product.

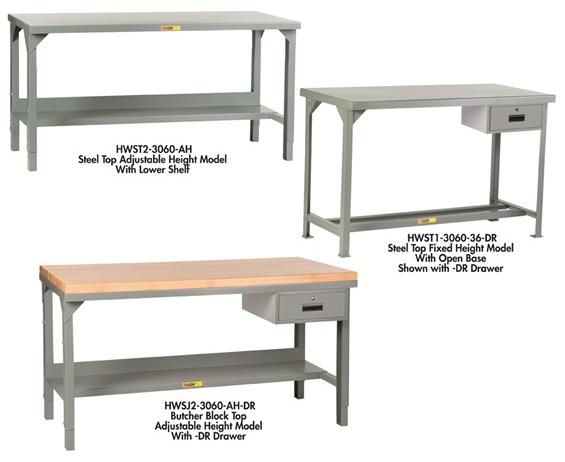

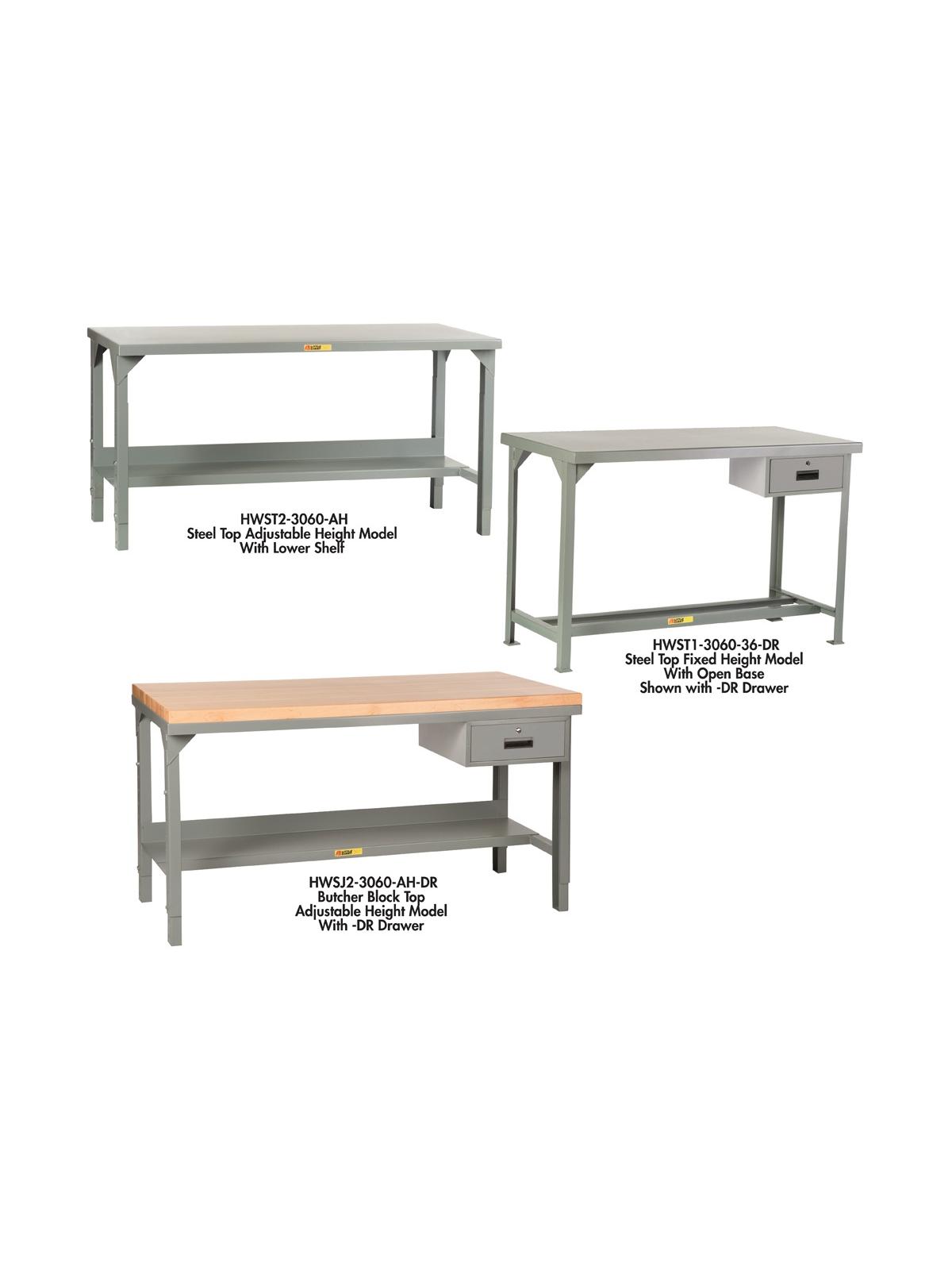

All-Welded Workbenches

All-welded units ship set up and ready for immediate use. Half depth lower shelf has a lip at rear. Open base models have centered angle iron cross braces, allowing leg room on both sides. Durable powder coat finish. FOB Shipping Point.

Surcharge may apply.

STEEL TOP
12 gauge steel tops are double reinforced for exceptional strength and rigidity.

BUTCHER BLOCK TOPS
Premium 1-3/4" hardwood is sanded and varnished for a smooth, durable work surface.

Optional Locking Drawer
-DR Measures 13"W. x 17"D. x 4-1/2 "H.
Select option when ordering workbench. Wt. 15 (lbs.)




Filter By


Product No. Top Type Height Options Size
D x W 		Cap. (lbs.) Wt. (lbs.) Qty Price Ea.
HWST2-2448-36 Steel 36" Fixed Ht. Lower Shelf 24 x 48" 5000 109 $530.09
$424.83
HWST2-3048-36 Steel 36" Fixed Ht. Lower Shelf 30 x 48" 5000 124 $559.21
$448.18
HWST2-3060-36 Steel 36" Fixed Ht. Lower Shelf 30 x 60" 4500 183 $628.50
$503.70
HWST2-3072-36 Steel 36" Fixed Ht. Lower Shelf 30 x 72" 4000 216 $690.97
$553.77
HWST2-3660-36 Steel 36" Fixed Ht. Lower Shelf 36 x 60" 4500 204 $665.36
$533.24
HWST2-3672-36 Steel 36" Fixed Ht. Lower Shelf 36 x 72" 4000 231 $752.29
$602.91
HWST2-3684-36 Steel 36" Fixed Ht. Lower Shelf 36 x 84" 3000 254 $834.97
$669.18
HWST1-2448-36 Steel 36" Fixed Ht. Open Base 24 x 48" 5000 87 $504.20
$404.08
HWST1-3048-36 Steel 36" Fixed Ht. Open Base 30 x 48" 5000 98 $533.33
$427.43
HWST1-3060-36 Steel 36" Fixed Ht. Open Base 30 x 60" 4500 151 $582.50
$466.83
HWST1-3072-36 Steel 36" Fixed Ht. Open Base 30 x 72" 4000 172 $635.94
$509.66
HWST1-3660-36 Steel 36" Fixed Ht. Open Base 36 x 60" 4500 166 $619.35
$496.37
HWST1-3672-36 Steel 36" Fixed Ht. Open Base 36 x 72" 4000 187 $696.19
$557.95
HWST1-3684-36 Steel 36" Fixed Ht. Open Base 36 x 84" 3000 207 $766.43
$614.24
HWST2-2448-AH Steel Adj. 27" to 41" in 2" Increments Lower Shelf 24 x 48" 5000 111 $576.64
$462.14
HWST2-3048-AH Steel Adj. 27" to 41" in 2" Increments Lower Shelf 30 x 48" 5000 126 $605.76
$485.48
HWST2-3060-AH Steel Adj. 27" to 41" in 2" Increments Lower Shelf 30 x 60" 4500 185 $675.04
$541.00
HWST2-3072-AH Steel Adj. 27" to 41" in 2" Increments Lower Shelf 30 x 72" 4000 218 $737.51
$591.07
HWST2-3660-AH Steel Adj. 27" to 41" in 2" Increments Lower Shelf 36 x 60" 4500 206 $712.03
$570.65
HWST2-3672-AH Steel Adj. 27" to 41" in 2" Increments Lower Shelf 36 x 72" 4000 233 $775.83
$621.78
HWST2-3684-AH Steel Adj. 27" to 41" in 2" Increments Lower Shelf 36 x 48" 3000 256 $858.53
$688.06
HWST1-2448-AH Steel Adj. 27" to 41" in 2" Increments Open Base 24 x 48" 5000 89 $549.01
$440.00
HWST1-3048-AH Steel Adj. 27" to 41" in 2" Increments Open Base 30 x 48" 5000 100 $578.14
$463.35
HWST1-3060-AH Steel Adj. 27" to 41" in 2" Increments Open Base 30 x 60" 4500 153 $627.41
$502.83
HWST1-3072-AH Steel Adj. 27" to 41" in 2" Increments Open Base 30 x 72" 4000 174 $680.66
$545.50
HWST1-3660-AH Steel Adj. 27" to 41" in 2" Increments Open Base 36 x 60" 4500 168 $664.40
$532.48
HWST1-3672-AH Steel Adj. 27" to 41" in 2" Increments Open Base 36 x 72" 4000 189 $719.00
$576.23
HWST1-3684-AH Steel Adj. 27" to 41" in 2" Increments Open Base 36 x 84" 3000 209 $787.97
$631.50
HWST2-2448-36-DR Steel 36" Fixed Ht. Lower Shelf & Locking Drawer 24 x 48" 5000 124 $808.87
$648.25
HWST2-3048-36-DR Steel 36" Fixed Ht. Lower Shelf & Locking Drawer 30 x 48" 5000 139 $837.98
$671.60
HWST2-3060-36-DR Steel 36" Fixed Ht. Lower Shelf & Locking Drawer 30 x 60" 4500 198 $907.27
$727.12
HWST2-3072-36-DR Steel 36" Fixed Ht. Lower Shelf & Locking Drawer 30 x 72" 4000 231 $969.74
$777.19
HWST2-3660-36-DR Steel 36" Fixed Ht. Lower Shelf & Locking Drawer 36 x 60" 4500 219 $944.13
$756.66
HWST2-3672-36-DR Steel 36" Fixed Ht. Lower Shelf & Locking Drawer 36 x 72" 4000 246 $1,031.07
$826.33
HWST2-3684-36-DR Steel 36" Fixed Ht. Lower Shelf & Locking Drawer 36 x 84" 3000 269 $1,113.74
$892.60
HWST1-2448-36-DR Steel 36" Fixed Ht. Open Base & Locking Drawer 24 x 48" 5000 102 $782.97
$627.50
HWST1-3048-36-DR Steel 36" Fixed Ht. Open Base & Locking Drawer 30 x 48" 5000 113 $812.10
$650.85
HWST1-3060-36-DR Steel 36" Fixed Ht. Open Base & Locking Drawer 30 x 60" 4500 166 $861.27
$690.25
HWST1-3072-36-DR Steel 36" Fixed Ht. Open Base & Locking Drawer 30 x 72" 4000 187 $914.71
$733.08
HWST1-3660-36-DR Steel 36" Fixed Ht. Open Base & Locking Drawer 36 x 60" 4500 181 $898.12
$719.78
HWST1-3672-36-DR Steel 36" Fixed Ht. Open Base & Locking Drawer 36 x 72" 4000 202 $974.97
$781.37
HWST1-3684-36-DR Steel 36" Fixed Ht. Open Base & Locking Drawer 36 x 84" 3000 222 $1,045.20
$837.66
HWST2-2448-AH-DR Steel Adj. 27" to 41" in 2" Increments Lower Shelf & Locking Drawer 24 x 48" 5000 126 $855.41
$685.56
HWST2-3048-AH-DR Steel Adj. 27" to 41" in 2" Increments Lower Shelf & Locking Drawer 30 x 48" 5000 141 $884.54
$708.90
HWST2-3060-AH-DR Steel Adj. 27" to 41" in 2" Increments Lower Shelf & Locking Drawer 30 x 60" 4500 200 $953.81
$764.43
HWST2-3072-AH-DR Steel Adj. 27" to 41" in 2" Increments Lower Shelf & Locking Drawer 30 x 72" 4000 233 $1,016.28
$814.49
HWST2-3660-AH-DR Steel Adj. 27" to 41" in 2" Increments Lower Shelf & Locking Drawer 36 x 60" 4500 221 $990.81
$794.07
HWST2-3672-AH-DR Steel Adj. 27" to 41" in 2" Increments Lower Shelf & Locking Drawer 36 x 72" 4000 248 $1,054.61
$845.20
HWST2-3684-AH-DR Steel Adj. 27" to 41" in 2" Increments Lower Shelf & Locking Drawer 36 x 48" 3000 271 $1,137.31
$911.48
HWST1-2448-AH-DR Steel Adj. 27" to 41" in 2" Increments Open Base & Locking Drawer 24 x 48" 5000 104 $827.79
$663.43
HWST1-3048-AH-DR Steel Adj. 27" to 41" in 2" Increments Open Base & Locking Drawer 30 x 48" 5000 115 $856.92
$686.77
HWST1-3060-AH-DR Steel Adj. 27" to 41" in 2" Increments Open Base & Locking Drawer 30 x 60" 4500 168 $906.18
$726.25
HWST1-3072-AH-DR Steel Adj. 27" to 41" in 2" Increments Open Base & Locking Drawer 30 x 72" 4000 189 $959.44
$768.93
HWST1-3660-AH-DR Steel Adj. 27" to 41" in 2" Increments Open Base & Locking Drawer 36 x 60" 4500 183 $943.18
$755.90
HWST1-3672-AH-DR Steel Adj. 27" to 41" in 2" Increments Open Base & Locking Drawer 36 x 72" 4000 204 $997.77
$799.65
HWST1-3684-AH-DR Steel Adj. 27" to 41" in 2" Increments Open Base & Locking Drawer 36 x 84" 3000 224 $1,066.74
$854.93
HWSJ2-2448-36 Butcher Block 37-3/4" Fixed Ht. Lower Shelf 24 x 48" 3000 125 $749.60
$600.75
HWSJ2-3048-36 Butcher Block 37-3/4" Fixed Ht. Lower Shelf 30 x 48" 3000 141 $850.07
$681.28
HWSJ2-3060-36 Butcher Block 37-3/4" Fixed Ht. Lower Shelf 30 x 60" 3000 199 $1,050.81
$842.16
HWSJ2-3072-36 Butcher Block 37-3/4" Fixed Ht. Lower Shelf 30 x 72" 3000 224 $1,202.61
$963.82
HWSJ2-3672-36 Butcher Block 37-3/4" Fixed Ht. Lower Shelf 36 x 72" 3000 223 $1,297.07
$1,039.52
HWSJ2-2448-AH Butcher Block Adj. 28-3/4" to 42-3/4" Lower Shelf 24 x 48" 3000 123 $854.90
$685.15
HWSJ2-3048-AH Butcher Block Adj. 28-3/4" to 42-3/4" Lower Shelf 30 x 48" 3000 141 $979.73
$785.19
HWSJ2-3060-AH Butcher Block Adj. 28-3/4" to 42-3/4" Lower Shelf 30 x 60" 3000 203 $1,140.91
$914.37
HWSJ2-3072-AH Butcher Block Adj. 28-3/4" to 42-3/4" Lower Shelf 30 x 72" 3000 229 $1,292.71
$1,036.03
HWSJ2-3672-AH Butcher Block Adj. 28-3/4" to 42-3/4" Lower Shelf 36 x 72" 3000 223 $1,447.62
$1,160.18
HWSJ2-2448-36-DR Butcher Block 37-3/4" Fixed Ht. Lower Shelf & Locking Drawer 24 x 48" 3000 140 $1,028.37
$824.18
HWSJ2-3048-36-DR Butcher Block 37-3/4" Fixed Ht. Lower Shelf & Locking Drawer 30 x 48" 3000 156 $1,128.85
$904.70
HWSJ2-3060-36-DR Butcher Block 37-3/4" Fixed Ht. Lower Shelf & Locking Drawer 30 x 60" 3000 214 $1,329.59
$1,065.58
HWSJ2-3072-36-DR Butcher Block 37-3/4" Fixed Ht. Lower Shelf & Locking Drawer 30 x 72" 3000 239 $1,481.39
$1,187.24
HWSJ2-3672-36-DR Butcher Block 37-3/4" Fixed Ht. Lower Shelf & Locking Drawer 36 x 72" 3000 238 $1,575.84
$1,262.94
HWSJ2-2448-AH-DR Butcher Block Adj. 28-3/4" to 42-3/4" Lower Shelf & Locking Drawer 24 x 48" 3000 138 $1,133.68
$908.57
HWSJ2-3048-AH-DR Butcher Block Adj. 28-3/4" to 42-3/4" Lower Shelf & Locking Drawer 30 x 48" 3000 156 $1,258.50
$1,008.61
HWSJ2-3060-AH-DR Butcher Block Adj. 28-3/4" to 42-3/4" Lower Shelf & Locking Drawer 30 x 60" 3000 218 $1,419.69
$1,137.79
HWSJ2-3072-AH-DR Butcher Block Adj. 28-3/4" to 42-3/4" Lower Shelf & Locking Drawer 30 x 72" 3000 244 $1,571.49
$1,259.45
HWSJ2-3672-AH-DR Butcher Block Adj. 28-3/4" to 42-3/4" Lower Shelf & Locking Drawer 36 x 72" 3000 238 $1,726.39
$1,383.58
